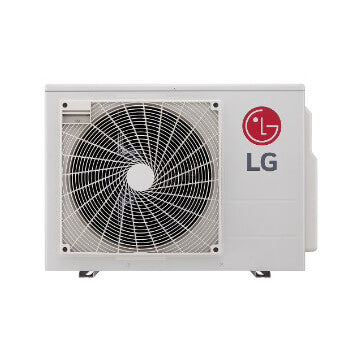

24,000 BTU, R-410A, Multi F Inverter Heat Pump - Outdoor Unit ( 24,000 BTU, R-410A, Multi F Inverter Heat Pump - Outdoor Unit)

LG heat pump systems consist of three basic components An inverter (variable speed) outdoor heat pump,stylish and quiet indoor units, and a conduit with piping and wiring to connect the outdoor unit to each indoorunit. Multiple indoor units allow precise indoor temperature control throughout your home and provide the abilityto adjust the temperature in each area to meet your needs.LG Multi F whole-home comfort systems provide powerful, efficient heating and cooling with up to eightindoor units operating off a single outdoor unit. In fact, most combinations are ENERGY STAR Certified.Individual room temperature control with low operating cost are at your fingertips with LG Multi F.Installation is easy and does not require major renovations the pipes connecting your outdoor unit to the indoor units are small and easy to run throughout your house. Your contractor can usually install a whole home system in just a few days start-to-finish and adding an additional indoor unit down the road is simple and cost-effective. Using three or more indoor units is more cost-effective and uses less space than installing three individual single-zone systems.Product Features Inverter variable-speed compressor on the outdoor unit for energy-saving operationDefrost De-icing capabilitiesRestart delay of three minutesSelf diagnosis capabilitiesSoft start reduces power surges to electrical systemsAuto operation and auto restart operationOperates down to 14F in cooling modeOperates-4F to 64F in heating without additional low ambient controlsR410A refrigerantPerformanceNominal Cooling Capacity 25,000 (Btuh)Nominal Heating Capacity 29,000 (Btuh)PipingRefrigerant Charge (lbs) 3.97Liquid Line (OD) 14" x 3Vapor Line (OD) 38" x 3Max Total Piping 230 ftMax ODU to IDU Piping 10.082 ftPiping Length (no add'l refrigerant, ft) 98.4Max Elevation between ODU and IDU 49.2 ftMax Elevation between IDU and IDU 24.6 ftUnit DataRefrigerant Type R410ARefrigerant Control EEVSound Pressure (CoolHeat) +-3 dB(A) 5054Net Unit Weight (lbs) 101.4Shipping Weight (lbs) 110.2Heat Exchanger Coating GoldFinMin Number of Indoor Units 2Max Number of Indoor Units 3LG LMU243HV - 24,000 BTU, R-410A, Multi F Inverter Heat Pump - Outdoor Unit- LG heat pump systems consist of three basic components An inverter (variable speed) outdoor heat pump,stylish and quiet indoor units, and a conduit with piping and wiring to connect the outdoor unit to each indoorunit. Multiple indoor units allow precise indoor temperature control throughout your home and provide the abilityto adjust the temperature in each area to meet your needs.

LG Multi F whole-home comfort systems provide powerful, efficient heating and cooling with up to eightindoor units operating off a single outdoor unit. In fact, most combinations are ENERGY STAR Certified.Individual room temperature control with low operating cost are at your fingertips with LG Multi F.

Installation is easy and does not require major renovations the pipes connecting your outdoor unit to the indoor units are small and easy to run throughout your house. Your contractor can usually install a whole home system in just a few days start-to-finish and adding an additional indoor unit down the road is simple and cost-effective. Using three or more indoor units is more cost-effective and uses less space than installing three individual single-zone systems.

Product Features

• Inverter variable-speed compressor on the outdoor unit for energy-saving operation
• Defrost De-icing capabilities
• Restart delay of three minutes
• Self diagnosis capabilities
• Soft start reduces power surges to electrical systems
• Auto operation and auto restart operation
• Operates down to 14F in cooling mode
• Operates-4F to 64F in heating without additional low ambient controls
• R410A refrigerant
  Performance
  • Nominal Cooling Capacity 25,000 (Btuh)
  • Nominal Heating Capacity 29,000 (Btuh)
    Piping
    • Refrigerant Charge (lbs) 3.97
    • Liquid Line (OD) 14" x 3
    • Vapor Line (OD) 38" x 3
    • Max Total Piping 230 ft
    • Max ODU to IDU Piping 10.082 ft
    • Piping Length (no add'l refrigerant, ft) 98.4
    • Max Elevation between ODU and IDU 49.2 ft
    • Max Elevation between IDU and IDU 24.6 ft
      Unit Data
      • Refrigerant Type R410A
      • Refrigerant Control EEV
      • Sound Pressure (CoolHeat) +-3 dB(A) 5054
      • Net Unit Weight (lbs) 101.4
      • Shipping Weight (lbs) 110.2
      • Heat Exchanger Coating GoldFin
      • Min Number of Indoor Units 2
      • Max Number of Indoor Units 3
