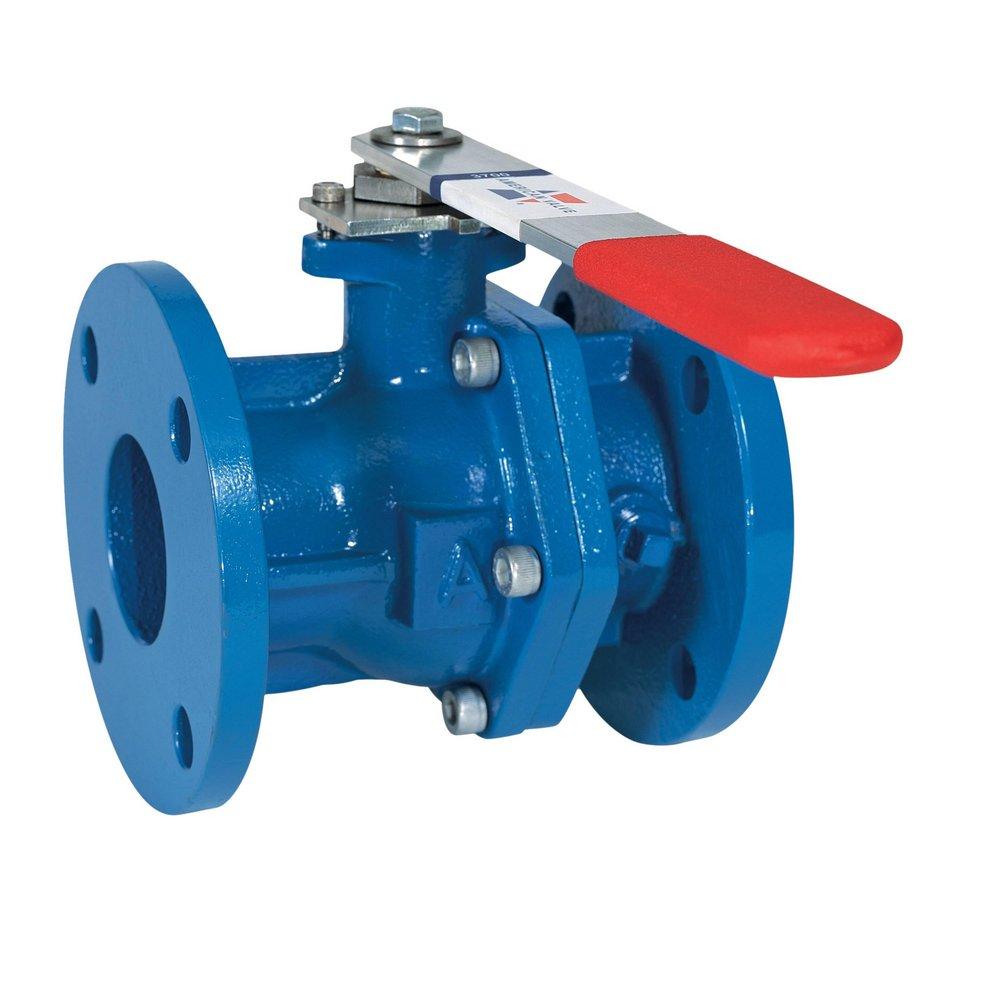

2 in. Cast Iron Full Port Flanged 125# Ball Valve
American Valve
3700 Series 2 in. Cast Iron Full Port Flanged 125# Ball Valve
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 1
Log in or Create Account
Log in or Create an Account to see product availability.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
American Valve
3700 Series
2 in. Cast Iron Full Port Flanged 125# Ball Valve
3700 2
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Frequently Purchased Together
Product Details
Product Details
- Lever valve handle
- Rated 200W at 200°F
- Same end-to-end dimensions as gate or plug valve
- Flanged end connections
- Material: Cast iron
- Valve seat material: Teflon®
- 100% lead-free
- Specifications: ASTM A-126B, ASME B16.1
- Certified to meet the requirements of NSF/ANSI 61 and NSF/ANSI 372
- PFA*- fused solid ball
Specifications
- ANSI:
- ANSI 372, ANSI 61, ANSI B16.10
- ASME:
- ASME B16.1
- ASTM:
- ASTM A-126 Class B, ASTM A-48 Class 35
- Clean Bagged:
- No
- Collection:
- 3700 Series
- End Connection 1:
- Flanged
- End Connection 2:
- Flanged
- End Connections:
- Flanged
- FM Approved:
- No
- Handle Length (in):
- 12 in
- Handle Material:
- Steel
- IAPMO Listed:
- No
- Length:
- 7 in
- MSS:
- MSS SP-70
- Material:
- Cast Iron, Plastic, Rubber
- Material Type:
- Buna-N, Vinyl, Virgin PTFE
- NSF:
- NSF 372, NSF 61
- NSF Certified:
- Yes
- Pressure - High:
- 200
- Pressure Class:
- 125#, 200#
- Recommended Valve Application:
- Air
- Temperature Range:
- Up to 200 Deg F
- Temperature Rating:
- 200
- UL Listed:
- Yes
- UPC:
- 611918016153
- Valve Body Material:
- Cast Iron
- Valve Body Style:
- Ball
- Valve Operator:
- Lever Handle
- Valve Port Opening:
- Full Port
- Valve Seat Material:
- Virgin PTFE
- Valve Size:
- 2 in
- Valve Stem:
- Blowout-proof
- Valve Type:
- Ball Valve
- Weight:
- 25 lb
- Width:
- 6 in
