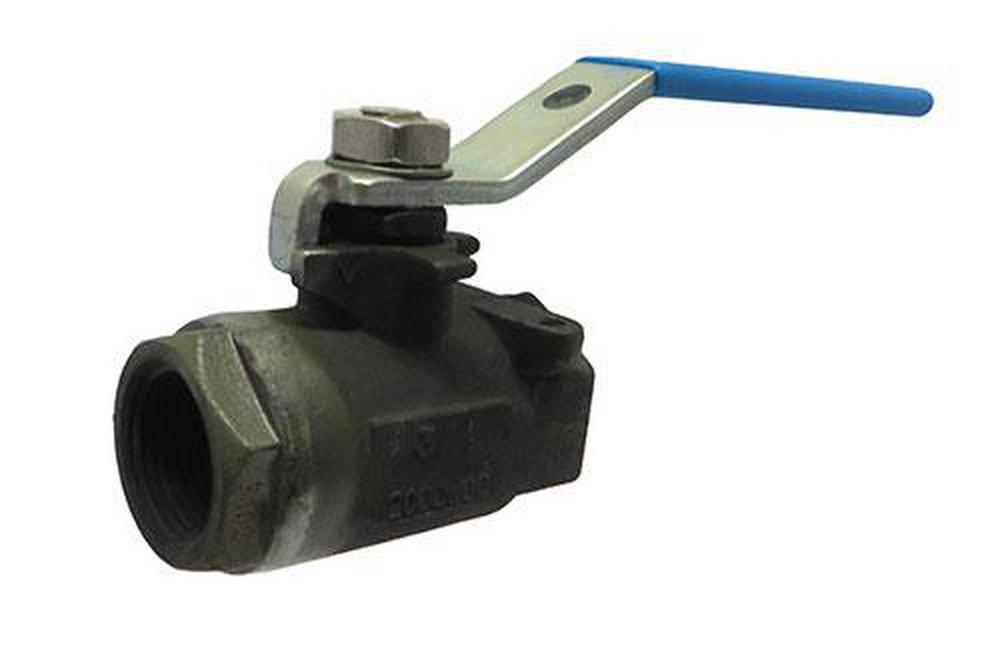

Milwaukee Valve 22 Series 1/4 in. Carbon Steel Reduced Port FNPT 2000# Ball Valve
Milwaukee Valve 22 Series 1/4 in. Carbon Steel Reduced Port FNPT 2000# Ball Valve
Regular price
$100.00 USD
Regular price
Sale price
$100.00 USD
Unit price
per
Shipping calculated at checkout.
Thank you for your submission!
We will get back to you soon.
Couldn't load pickup availability
Product Details
Product Details
Specifications
Ferguson.com no longer supports Internet Explorer. If you continue using IE, your experience will be degraded and you will not be able to check out.
To use Ferguson.com, please use one of the following browsers: Chrome, Safari, Firefox, or Edge.
1/4 in. Carbon Steel Reduced Port FNPT 2000# Ball Valve
Milwaukee Valve
22 Series 1/4 in. Carbon Steel Reduced Port FNPT 2000# Ball Valve
Package Quantity Info:
Each: 1 Inner Pack: 10
Log in or Create Account
Log in or Create an Account to see product availability.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Milwaukee Valve
22 Series
1/4 in. Carbon Steel Reduced Port FNPT 2000# Ball Valve
506743
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Frequently Purchased Together
Product Details
Product Details
- Locking lever for safety lockout
- Multiple V-ring stem packing arrangement for longer packing life
- Vent hole in ball slot for cavity venting
- Mounting pad for easy actuation
- PTFE body seal/except on 22 series
- NACE compliant for sour gas service
- Blowout proof stem
- Cantilever seat design for low operating torque
- 22 Series offers sealed welded body to tailpiece construction
- Meets latest ASME, MSS-SP and ASTM specifications
-
Not Compliant, Approved for Non-Potable Water Applications
Specifications
- ASTM:
- ASTM A-216 Grade WCB, ASTM A-276 Type 316
- BAA Compliant:
- No
- Clean Bagged:
- No
- Collection:
- 22 Series
- End Connection 1:
- FNPT
- End Connection 2:
- FNPT
- End Connections:
- FNPT
- FM Approved:
- No
- Fire Suppression System Rated:
- No
- Handle Material:
- Stainless Steel
- IAPMO Listed:
- No
- Lead Law Compliance Level:
- Not Compliant, Approved for Non-Potable Water Applications
- Length:
- 2-4/5 in
- MA Approved:
- No
- MSS:
- MSS SP-110
- Material:
- Carbon Steel, Plastic, Stainless Steel
- Material Type:
- 316, A216-WCB, NXT
- NSF Certified:
- No
- Origin:
- Domestic
- Pressure - High:
- 150, 2000
- Pressure Class:
- 150#, 2000#
- Proposition 65:
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Recommended Valve Application:
- Gas, Oil, Sour Gas, Steam, Water
- UL Listed:
- No
- UPC:
- 697988645523
- Valve Body Material:
- Carbon Steel
- Valve Body Style:
- 2 piece
- Valve Disc Material:
- Stainless Steel
- Valve Operator:
- Locking Spring Oval Handle
- Valve Port Opening:
- Standard Port
- Valve Seat Material:
- NXT
- Valve Size:
- 3/4 in
- Valve Stem:
- Blowout-proof
- Valve Type:
- Ball Valve
- cUPC Certified:
- No
