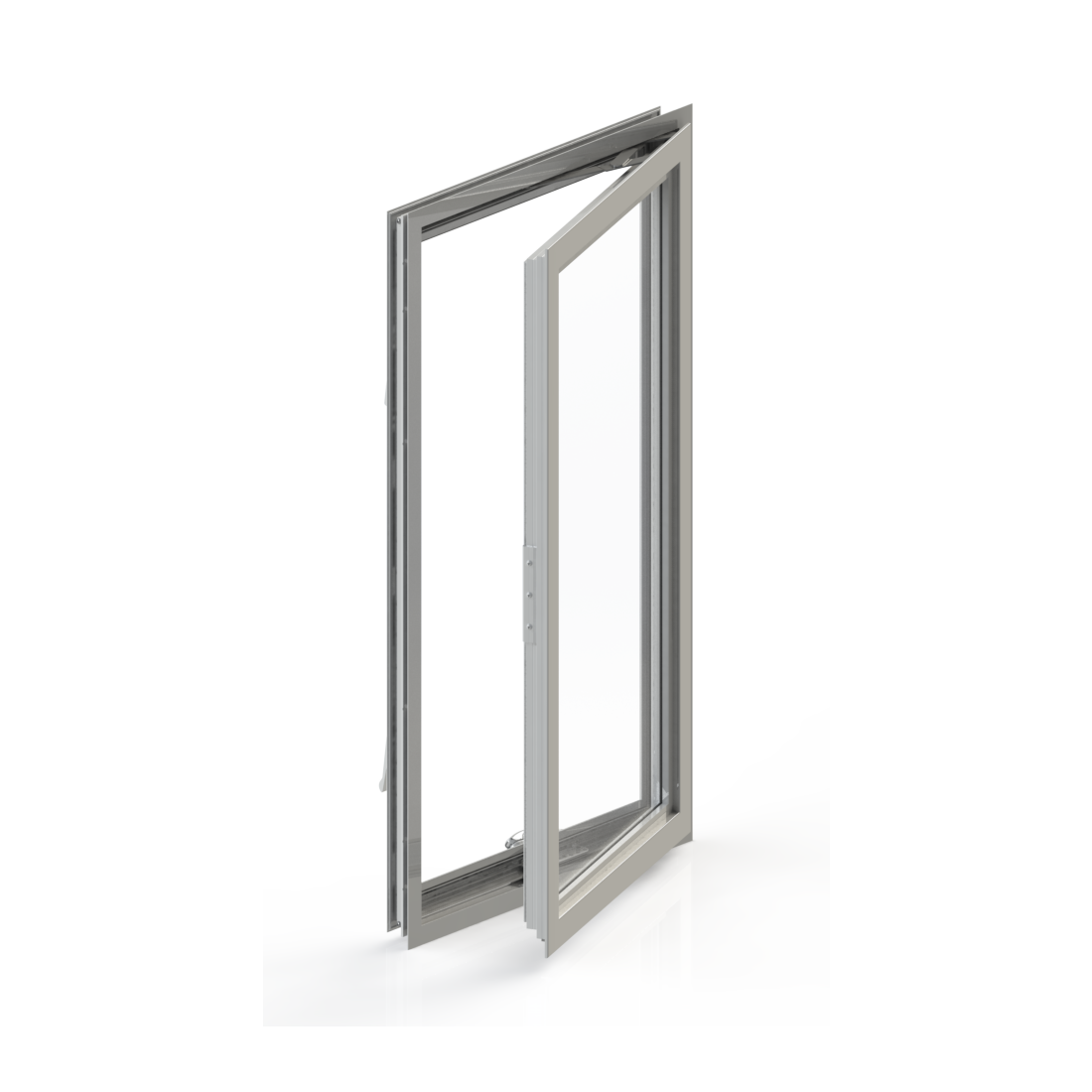

ES-5000 Elite Casement Impact Window (ESW)

Impact-rated casement window with rotating handle for smooth operation and multiple glazing options for design flexibility.

Key specs

• Frame depth: 2 1/8 in; configurations: X, XX.
• Large missile impact rated.
• Tested water infiltration: 13.5 psf; tested design load: +90/-90 psf.
• Maximum size: up to 37 in W × 74 1/4 in H (single) or 74 in W × 74 1/4 in H (double, project dependent).

Features

• Single arm operator and multi‑point lock.
• Screens available; muntin options available.
