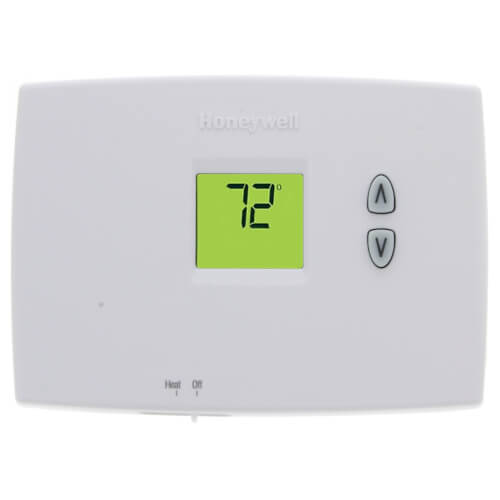

PRO 1000 Non-Programmable, Heat Only, Horizontal Thermostat, TH1100DH1004 ( PRO 1000 Non-Programmable, Heat Only, Horizontal Thermostat, TH1100DH1004 )

OverviewThe PRO non-programmable family of thermostats provides basic and simple operation with specific models for conventional and heat pump systems. Application Heat OnlyFeaturesDimensions (Height x Width x Depth) 3 716" x 4 1016" x 1 316" (87mm x 119mm x 30mm)Mounting HorizontalElectrical Ratings 20 to 30 Vac or 750 mVFrequency 50 Hz, 60 HzStages 1 HeatColor Premier WhiteSetting Temperature Range Selectable 40F to 90F or 35F to 90F (4.5C to 32C or 1.5C to 32C) (Heat)Switch Positions (System) HEAT-OFFTerminal Designations R, C, WPower Method Dual Powered Battery or HardwireDisplay Size 1.32 sq in.Changeover ManualOperating Humidity Range 5 to 90% RH, non-condensingCycles per Hour Heating 2 - 6 CPHHeat Current 0.02 A to 1.0 A (running).Honeywell Home TH1100DH1004 - PRO 1000 Non-Programmable, Heat Only, Horizontal Thermostat, TH1100DH1004- Overview
The PRO non-programmable family of thermostats provides basic and simple operation with specific models for conventional and heat pump systems.

Application

• Heat Only
  Features

  • Dimensions (Height x Width x Depth) 3 716" x 4 1016" x 1 316" (87mm x 119mm x 30mm)
  • Mounting Horizontal
  • Electrical Ratings 20 to 30 Vac or 750 mV
  • Frequency 50 Hz, 60 Hz
  • Stages 1 Heat
  • Color Premier White
  • Setting Temperature Range Selectable 40F to 90F or 35F to 90F (4.5C to 32C or 1.5C to 32C) (Heat)
  • Switch Positions (System) HEAT-OFF
  • Terminal Designations R, C, W
  • Power Method Dual Powered Battery or Hardwire
  • Display Size 1.32 sq in.
  • Changeover Manual
  • Operating Humidity Range 5 to 90% RH, non-condensing
  • Cycles per Hour Heating 2 - 6 CPH
  • Heat Current 0.02 A to 1.0 A (running).
