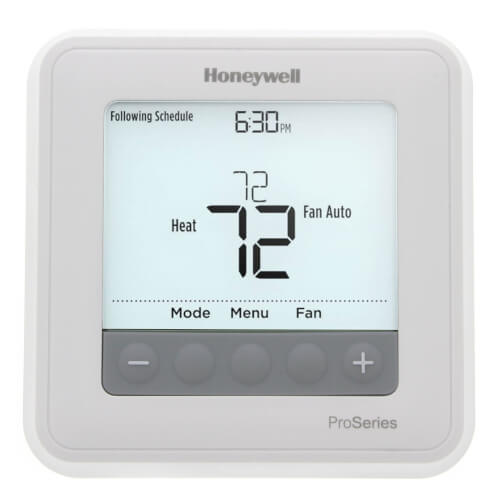

T6 Pro Programmable Thermostat, 2H/1C Heat Pump, 2H/2C Conventional, TH6220U2000 ( T6 Pro Programmable Thermostat, 2H/1C Heat Pump, 2H/2C Conventional, TH6220U2000 )

The T Series programmable thermostat streamlines everything from product selection and installation to customer service and support. With a standard footprint and simple interface, the T Series will enhance the entire thermostat experience for you and your customers alikePackage IncludesT6 PRO ThermostatUWP Mounting SystemHoneywell Standard InstallationAdapter (J-box adapter)Honeywell Decorative Cover Plate Small; size 4-4964 in = 121mm.Screws and anchorsProfessional Install GuideGetting Started GuideFeaturesPush-button programmableOptional dual fuelFlexible schedulingApplication Standard Efficient Gas Forced Air, High Efficacy Gas Forced Air, Oil Forced Air, Electric Forced Air, Hot water Fan Coil, Geothermal Heat Pump, Air to Air Heat Pump, Hot Water Radiant Heat, SteamElectrical Ratings 20 to 30 VacStages Up to 2 Heat1 Cool Heat Pumps; Up to 2 Heat2 Cool Conventional SystemsElectrical Connections Honeywell UWP Mounting SystemOperating Humidity Range (% RH) 5 to 90% RH, non-condensingSupply Voltage 20 to 30 VacSwitch Positions (System) HEAT-OFF-COOL-AUTO-EM.HEATSwitch Positions (Fan) AUTO-ON-CIRC-FOLLOW SCHEDULEOperating Temperature Range (F) 37 F to 102 FShipping and Storage Temperature Range (F) - 20 F to 120 FAccuracy (F) 4 FDifferential Temperature (F) 1 FInterstage Differential Temperature (F) 1 to 1.5 F Multistage models onlyAmbient Temperature Range (F) 32 F to 120 FSwitch Type RelayLEDs LED Back Light Programmability 7 day, 5-1-1 day, 5-2 day, or Non-programmable Power Method Battery or Hardwired Terminal Designations RC, R, C, W, W2 - AUX, Y, Y2, OB, G, K, E, LA, S, S Display Large Display, Soft Key Controls Display Size 5.44 sq. in. Temperature Control Mode Selections Ambient Air Temperature Changeover Auto or Manual Setting Temperature Range (F) Heat 40 F to 90 F; Cool 50 F to 99F Setting Heat Current 0.02-1.0 A Fan Current 0.02-.05 AHoneywell Home TH6220U2000 - T6 Pro Programmable Thermostat, 2H1C Heat Pump, 2H2C Conventional, TH6220U2000-

The T Series programmable thermostat streamlines everything from product selection and installation to customer service and support. With a standard footprint and simple interface, the T Series will enhance the entire thermostat experience for you and your customers alike

Package Includes

• T6 PRO Thermostat
• UWP Mounting System
• Honeywell Standard Installation Adapter (J-box adapter)
• Honeywell Decorative Cover Plate Small; size 4-4964 in = 121mm.
• Screws and anchors
• Professional Install Guide
• Getting Started Guide

•


  Features

  • Push-button programmable
  • Optional dual fuel
  • Flexible scheduling
  • Application Standard Efficient Gas Forced Air, High Efficacy Gas Forced Air, Oil Forced Air, Electric Forced Air, Hot water Fan Coil, Geothermal Heat Pump, Air to Air Heat Pump, Hot Water Radiant Heat, Steam
  • Electrical Ratings 20 to 30 Vac
  • Stages Up to 2 Heat1 Cool Heat Pumps; Up to 2 Heat2 Cool Conventional Systems
  • Electrical Connections Honeywell UWP Mounting System
  • Operating Humidity Range (% RH) 5 to 90% RH, non-condensing
  • Supply Voltage 20 to 30 Vac
  • Switch Positions (System) HEAT-OFF-COOL-AUTO-EM.HEAT
  • Switch Positions (Fan) AUTO-ON-CIRC-FOLLOW SCHEDULE
  • Operating Temperature Range (F) 37 F to 102 F
  • Shipping and Storage Temperature Range (F) - 20 F to 120 F
  • Accuracy (F) 4 F
  • Differential Temperature (F) +- 1 F
  • Interstage Differential Temperature (F) 1 to 1.5 F Multistage models only
  • Ambient Temperature Range (F) 32 F to 120 F
  • Switch Type Relay
  • LEDs LED Back Light
  • Programmability 7 day, 5-1-1 day, 5-2 day, or Non-programmable
  • Power Method Battery or Hardwired
  • Terminal Designations RC, R, C, W, W2 - AUX, Y, Y2, OB, G, K, E, LA, S, S
  • Display Large Display, Soft Key Controls
  • Display Size 5.44 sq. in.
  • Temperature Control Mode Selections Ambient Air Temperature
  • Changeover Auto or Manual Setting
  • Temperature Range (F) Heat 40 F to 90 F; Cool 50 F to 99F Setting
  • Heat Current 0.02-1.0 A Fan Current 0.02-.05 A
  • External Sensors Available Optional Outdoor - C7089U1006, Remote Indoor - C7189U1005 (Sold Separately)
