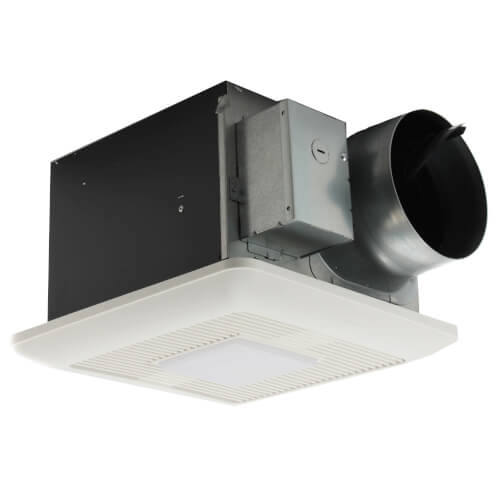

WhisperCeiling DC w/LED light, Pick-A-Flow 110/130/150 CFM Ceiling, Large Room, ENERGY STAR, Bath Exhaust Fan ( WhisperCeiling DC w/LED light, Pick-A-Flow 110/130/150 CFM Ceiling, Large Room, ENERGY STAR, Bath Exhaust Fan )

WhisperCeiling DC Precision Spot Ventilation Fan Light with built-in Pick-A-Flow speed selector switch allows you to select your required airflow (110-130-150 CFM). Features an ECM Motor with SmartFlow technology and a Flex-Z Fast installation bracket. Can be used to comply with the latest codes and standards.Key FeaturesRevolutionary ECM motor with SmartFlow technology for optimum CFM outputPick-A-Flow Speed Selector one fan, you choose the CFM (110, 130, 150 CFM model)Flex-Z Fast bracket provides flexible, fast & trouble-free installation, even from below the ceilingLighted models incorporate one long-life, 10W dimmable LED chip panel with <1W LED night light for warm, energy efficient illuminationElegant grille design compliments the aesthetics of any bathroomVentilating fan shall be Low Noise ceiling mounttype rated for continuous run. Fan shall beENERGY STAR rated and certified by theHome Ventilation Institute (HVI). Evaluated byUnderwriters Laboratories and conform to bothUL and cUL safety standards. Sones at 110 CFM <0.3 0.5Sones at 130 CFM <0.3 <0.7Sones at 150 CFM 0.5 0.8MotorBlowerEnclosed brushless ECM motor technologyrated for continuous run.Fan ventilation rates shall be manuallyadjustable for 110130150 CFM.Power rating shall be 120 volts and 60 Hz.Fan shall be UL and cUL listed for tubshower enclosure when GFCI protectedMotor equipped with thermalcutoff fuse.Removable with permanently lubricated pluginmotorHousing26 gauge Zinc-Aluminum-Magnesium (ZAM)housingIntegrated 6 diameter ductadapter.Built-in damper reduces back drafting andhelps with blower door testing.Built-in metal flange provides blocking for penetrations through drywall as an Air Barrier,and assists with the decrease in leakage in theBuilding Envelope during blower door testing.Articulating and expandable installationbracket up to 24".Ceiling Radiation DamperWhisperCeiling DC is UL listed for usewith the Panasonic Ceiling Radiation Damper(Model # PC-RD05C5, sold separately).WarrantyECM Motor 6 Years from original purchasedate.ALL Parts 3 Years from original purchasedate.Panasonic FV-1115VQL1 - WhisperCeiling DC wLED light, Pick-A-Flow 110130150 CFM Ceiling, Large Room, ENERGY STAR, Bath Exhaust Fan- WhisperCeiling DC Precision Spot Ventilation Fan Light with built-in Pick-A-Flow speed selector switch allows you to select your required airflow (110-130-150 CFM). Features an ECM Motor with SmartFlow technology and a Flex-Z Fast installation bracket. Can be used to comply with the latest codes and standards.Key Features

• Revolutionary ECM motor with SmartFlow technology for optimum CFM output
• Pick-A-Flow Speed Selector one fan, you choose the CFM (110, 130, 150 CFM model)
• Flex-Z Fast bracket provides flexible, fast & trouble-free installation, even from below the ceiling
• Lighted models incorporate one long-life, 10W dimmable LED chip panel with <1W LED night light for warm, energy efficient illumination
• Elegant grille design complements the aesthetics of any bathroom
  Ventilating fan shall be Low Noise ceiling mounttype rated for continuous run. Fan shall beENERGY STAR rated and certified by theHome Ventilation Institute (HVI). Evaluated byUnderwriters Laboratories and conform to bothUL and cUL safety standards.


  • Sones at 110 CFM <0.3 0.5
  • Sones at 130 CFM <0.3 <0.7
  • Sones at 150 CFM 0.5 0.8

    MotorBlower
    • Enclosed brushless ECM motor technologyrated for continuous run.
    • Fan ventilation rates shall be manuallyadjustable for 110130150 CFM.
    • Power rating shall be 120 volts and 60 Hz.
    • Fan shall be UL and cUL listed for tubshower enclosure when GFCI protected
    • Motor equipped with thermalcutoff fuse.
    • Removable with permanently lubricated pluginmotor

      Housing
      • 26 gauge Zinc-Aluminum-Magnesium (ZAM)housing
      • Integrated 6 diameter ductadapter.
      • Built-in damper reduces back drafting andhelps with blower door testing.
      • Built-in metal flange provides blocking for penetrations through drywall as an Air Barrier,and assists with the decrease in leakage in theBuilding Envelope during blower door testing.Articulating and expandable installationbracket up to 24".

        Ceiling Radiation Damper
        • WhisperCeiling DC is UL listed for usewith the Panasonic Ceiling Radiation Damper(Model # PC-RD05C5, sold separately).

          Warranty
          • ECM Motor 6 Years from original purchasedate.
          • ALL Parts 3 Years from original purchasedate.
